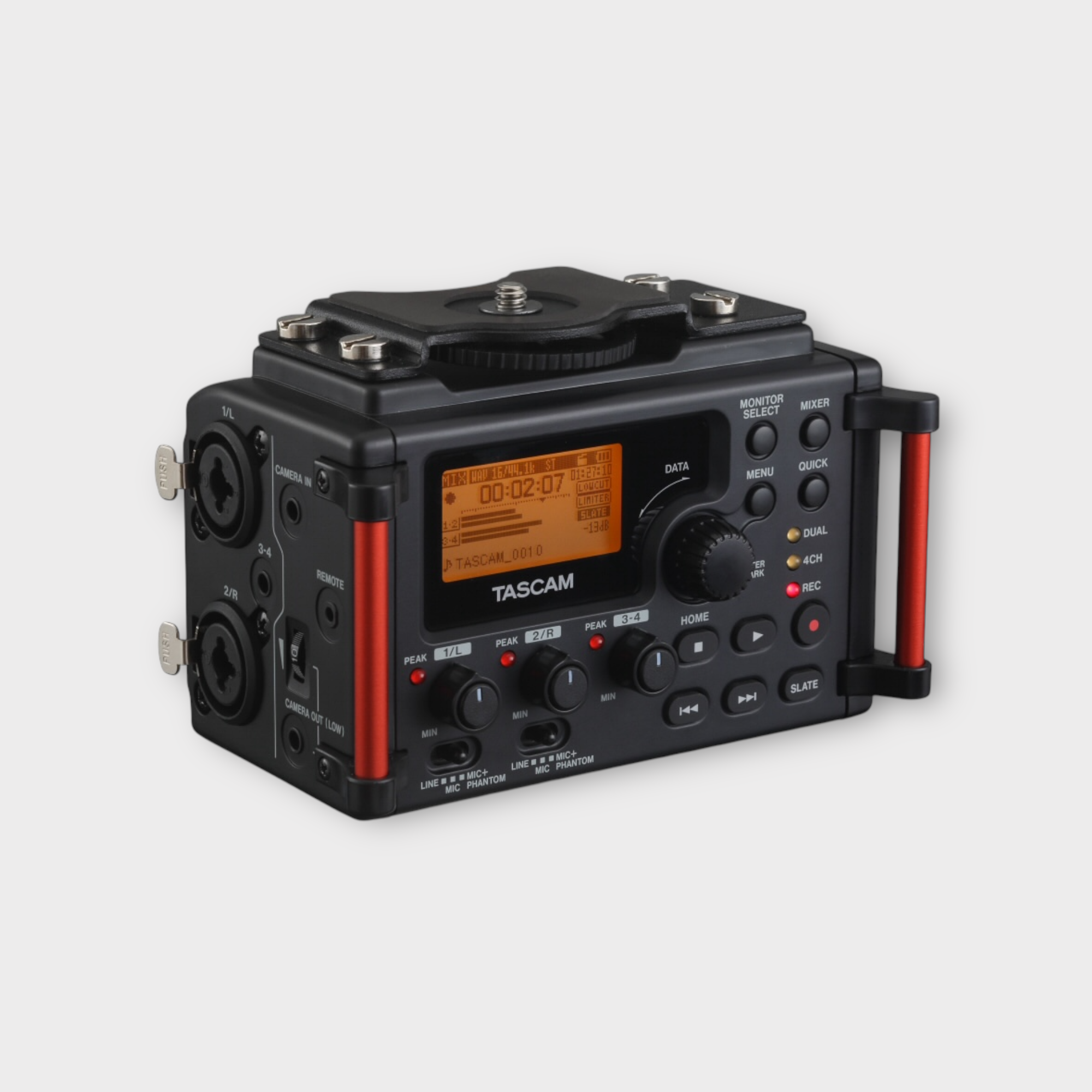

Tascam DR-60D Recorder
4-Track Audio Field Recorder & Mixer for Audio/Video
TASCAM's DR-60DmkII, an update of the award winning DR-60D, is the audio recording solution for on-set filmmakers and videographers. The streamlined design fits perfectly under a DSLR camera rig, without relying on bulky recorders or the limited audio quality of the camera’s microphone in.
Multiple Record Modes Meet Any Challenge On-Set
The DR-60DmkII includes several recording modes to adapt to any recording scenario:
MONO/DUAL MONO mode:
Ideal for single source microphones, like using a shotgun together with a clip-on lavaliere mic
STEREO/DUAL STEREO mode:
These modes are ideal for shooting with a stereo or mid-side microphone. A Mid-Side Decoder is built in, and can be added either during monitoring or before recording
4CH mode:
This mode records all four microphone inputs to their own tracks.
DUAL MONO and DUAL STEREO mode:
Records a back-up safety track in case levels are set too high and clipping occurs. The safety track can be set to record from -6dB to -12dB below the initial take. If an actor suddenly screams a line, you have a backup recording that isn’t distorted
| undefined | Description |
|---|---|
| RECORDING MEDIA | SD card (64MB to 2GB), SDHC card (4GB to 32GB) |
| RECORDING FORMAT | WAV: 44.1k/48k/96k Hz, 16/24-bit |
| BWF: 44.1k/48k/96k Hz, 16/24-bit | |
| NUMBER OF CHANNELS | 4-channel (stereo x2) |
| ANALOG AUDIO | |
| 1/L, 2/R CONNECTORS | |
| CONNECTOR | XLR-3-31 (1:GND, 2:HOT, 3:COLD) / 1/4" (6.3mm) TRS standard jack |
| SET TO "MIC / MIC+PHANTOM" | |
| INPUT IMPEDENCE | 2kΩ |
| PHANTOM POWER | 48V ±4V (10mA/CH) / 24V ±4V (10mA/CH) |
| MAX INPUT LEVEL | 0dBu |
| MIN INPUT LEVEL | –72dBu |
| MIC INPUT GAIN | TRIM MAX |
| LOW | +11dB |
| MID | +36dB |
| HIGH | +52dB |
| HIGH+PLUS | +64dB |
| SET TO "LINE" | |
| INPUT IMPEDENCE | 10kΩ or more |
| STANDARD INPUT LEVEL | +4dBu |
| MAXIMUM INPUT LEVEL | +24dBu |
| 3-4 CONNECTOR | |
| CONNECTOR | 1/8" (3.5mm) stereo mini jack (this connector can be supplied plug-in power) |
| INPUT IMPEDENCE | 10kΩ |
| MAX INPUT LEVEL | +10dBV |
| MIN INPUT LEVEL | –50dBV |
| MIC INPUT GAIN | TRIM MAX |
| LOW | +3dB |
| HIGH | +26dB |
| HIGH+PLUS | +38dB |
